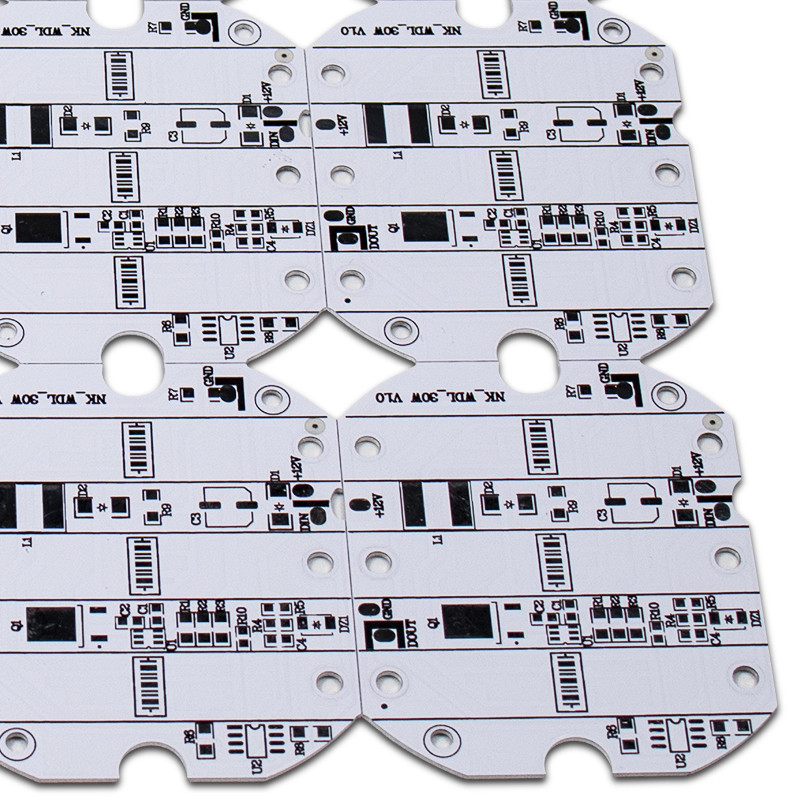

SMT OEM Led Aluminum Pcb 2835 3030 Mcpcb For Led Tube Light Pcb
Product details
| Model NO. | HMY-808 | Customized | Customized |
| Layers | 1 ~16layers | Origin | Shenzhen,China |
| Base Material | FR4, High Tg FR4, Halogen Free, Isola, Rogers, Aluminium | ||
| Finished Board Thickness | 0.2~3.8mm | Copper Thickness | 0.5oz ~ 6oz |
| Surface Finishing | HASL,ENIG,OSP,Immersion Silver,ImmersionTin, | Max gold plating thickness | 50 micro inch |
| Silkscreen color | White, Black, Green, Yellow, Red, Blue | ||
| Min trace Width | 0.075mm(3mil) | Min Trace Space | 0.075mm(3mil) |
| Min finished holes size | 0.1mm(4mil) for laser holes; 0.2mm(8mil) for mechanical holes | ||
| Max finished size | 600mm*900mm | Hole Tolerance | PTH:±0.076mm(+/-3mil), NTPH:±0.05mm(+/-2mil) |
| Solder mask color | Green, White, Black, Red, Yellow, Blue,Matt -Black,Matt-Green | Impedance Control | ±10% |
| Profiling Punching | Routing, V-CUT, Chamfer, Punching | Special Holes | Blind/Buried holes, Countersunk holes |
| Reference Standard | IPC-A-600H Class 2, Class 3, | Certificate | UL, ISO9001, ROHS.SGS,CQC |
| Package | Vacuum & Carton | ||
Packaging & Delivery
Packaging Details: Carton Box with Vaccum Anti-static bag inner
Delivery.
Delivery Time:2 to 15 days after deposit
FAQ
Even though all aluminum clads work the same way, i.e., in heat dissipation, different types have individual characteristics based on their design and structure. The following are the types of aluminum clads that you should be knowing.
When we design through-hole aluminum PCB, the manufacturer backfills and pre-drills a single aluminum layer and then applies the laminate material. There will be a formation of a core of multilayer constructions after this process. Afterward, they laminate the thermal materials on the two sides of the board with thermal bonding materials. The final touch involves drilling on the assembly.
A flexible aluminum PCB is a recently marketed circuit board with a polyimide resin integrated with ceramic filters upon purchase.
The two materials’ essence is to increase insulation, flexibility (you can twist or fold the PCB to any shape and retain the form), and thermal efficiency. What’s more, their application is cost-effective since you won’t need to purchase connectors or cables. It’s disadvantageous because you can’t alter or modify the final product once you acquire a specific shape.
Multilayer aluminum PCBs have multiple-layer of thermally conductive dielectrics. The design constitutes one or more layers of circuitry found in the dielectric with blind vias representing thermal or signal vias.
An advantage to using multilayer IMS PCB is the straightforward and operative solution they offer for heat conductivity in complex products. Contrary to that, they’re costly and can’t easily engage in heat transfer in single layer designs. Their application is often in power supply products.
In this type of PCB; the insulating layer is an epoxy resin material. The epoxy resin should have excellent thermal conductivity.
With high-frequency aluminum PCB, the insulating layer has a polyolefin or polyimide material. Other times, it can be woven fiberglass between an epoxy resin. The purpose of the materials is to improve the flexibility of the PCB.
|
|
