Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB
5 Years
| Ask Lasest Price | |
| Brand Name : | Yizhuo |
| Model Number : | Aluminum Pcb Board 01 |
| Certification : | CE,ROHS,UL |
| Payment Terms : | T/T, Western Union |
| Delivery Time : | 10-12 work days |
Beveling LED PCB Board

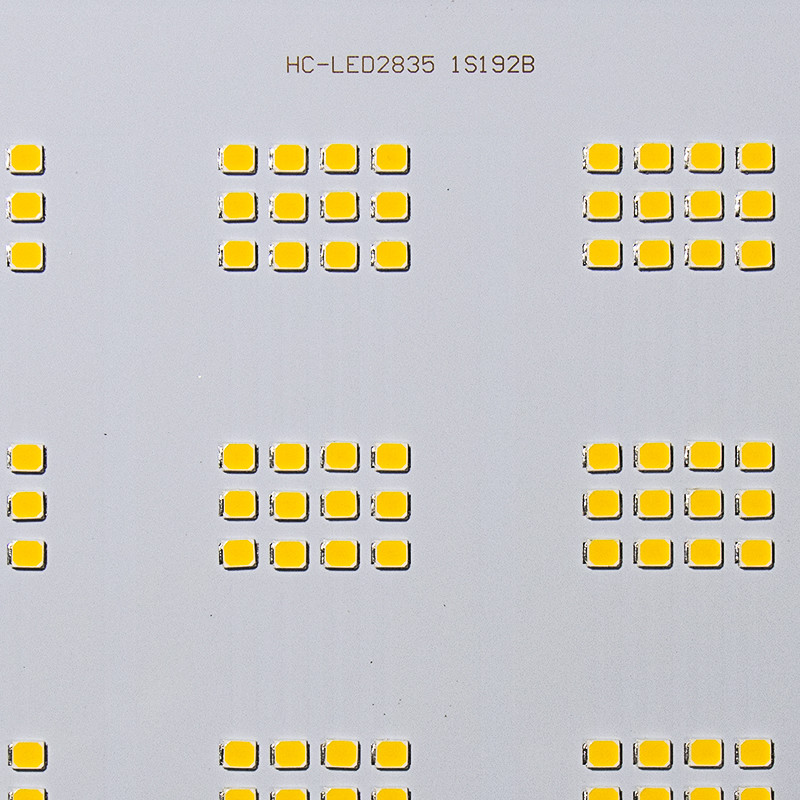

LED PCB aluminum board, LED PCBA assembly round LED bulb PCB board
LED PCB Board Description
| Item | Capability |
| Monthly capability | Shenzhen factory: 25,000sqm/month |
| Layer | 1-14 Layers |
| Board material | FR-4 Tg130, FR-4 tg140, FR-4 Tg150, FR-4 Tg170, FR-4 Tg180, FR-4 CTI175, FR-4 CTI300 |
| Surface treatment | HASL, RoHS-HASL, Immersion gold, Plating gold, Gold fingers, OSP, |
| Solder mask color | Green, Blue, Red, Black, Yellow, White |
| Silkscreen color | White, Black, Yellow |
| Tolerance | PTH diameter tolerance: +/-0.075mm NPTH diameter tolerance: +/-0.05mm Hole location tolerance: +/-0.075mm |
| V-cut depth tolerance: +/-0.1mm | |
| Technical Specification | Min line width/space: 0.075/0.075mm |
| Min PTH copper thickness: 20um | |
| Min hole diameter: 0.2mm | |
| Min pad ring: 0.1mm | |
| Max copper thickness: 6oz | |
| Max board size: 560*410mm | |
| Board thickness Double-sided board: 0.2-7.0mm Multilayer board: 0.4-7.0mm | |
| Solder mask bridge: ≥0.08mm | |
| Aspect ratio: 8:1 | |
| Via plugging capacity: 0.2-0.6mm | |
| Board bow and twist: ≤0.75% |
PCB Types:
Single-layer PCBs, double layer PCBs, multilayer PCBs, high TG FR-4
PCBs, heavy copper PCBs, impedance controlled PCBs, gold finger
PCBs, plating gold PCBs, and some other PCBs according to
customers' requirements.
Application:
Telecommunication, Power Supply, Computer, Industrial Control,
Digital Products, Science and Education instruments, Medical
Instruments, GPS Technology, Automobile, Satellite Systems, etc.
Developing and manufacturing all kinds of exceptive type PCB and
special materials PCB.
Company profile
Yizhuo Electronic is a one-stop PCB supplier, founded in 2006,
located in Shenzhen, a city famous for its electronics industry. It
has ISO and UL certificates and is honored as a HI-TECH enterprise
by the Shenzhen government.
1. PCB manufacturer located in Shenzhen.
2. ISO, TS16949, and UL certificate.
3. 300 total staff.
4. 15 years experience.
5. 25,000sqm production capacity.
6. Advanced automatic production equipment.
7. Offers various kinds of PCBs, small to medium to mass quantity
orders.
8. Major markets include domestic China, Asia, Europe, and North
America.
9. Customers include electronics products factories, OEM/ODM
factories, PCBA factories, EMS, trading companies.
