Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB
5 Years
| Ask Lasest Price | |
| Brand Name : | Yizhuo |
| Model Number : | Aluminum Pcb Board 01 |
| Certification : | CE,ROHS,UL |
| Payment Terms : | T/T, Western Union |
| Delivery Time : | 10-12 work days |

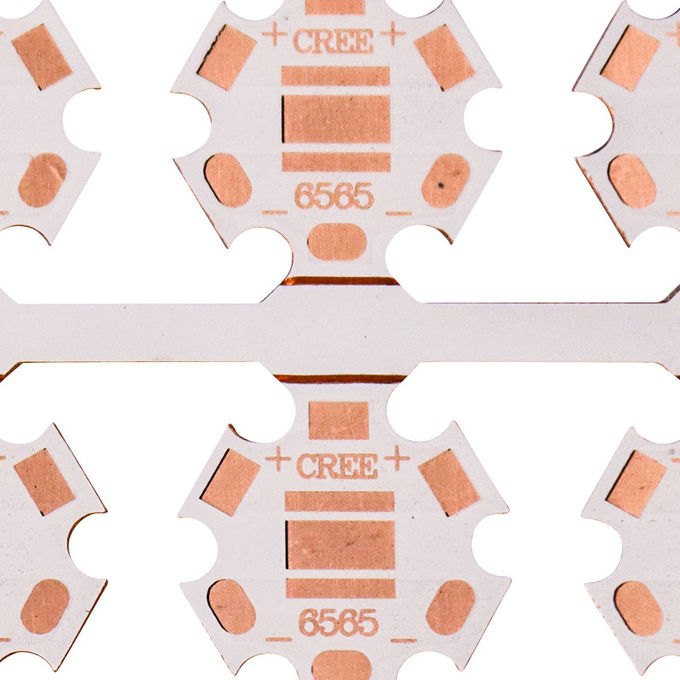

LED Lighting DC 24V Heavy Copper PCB CE ROHS UL With Aluminum Base
heavy copper pcb manufacturers copper clad pcb Aluminum PCB Board for 28-LED Lighting DC 24V
What is an SMD LED PCB Board?
SMD stands for Surface Mount Device. The surface mount technology (SMT) has almost replaced the through-hole technology. However, through-hole technology is still used for the components that cannot be surface mounted. Therefore, Surface Mount LED PCB is very popular
SMDs are compact components that can be directly placed over the PCB. There is no need for a hole because the components do not have leads or might have small leads. There are only small contacts at the ends of the device that are used to make connections. Consequently, the PCBA is very compact. SMDs are soldered using reflow soldering. At first, the solder paste is applied on the bare board. Then, the components are picked and placed in the desired place. Finally, the board is passed through a reflow oven, and the components are directly mounted without any hassle.
An SMD LED PCB board contains SMD LEDs that are more compact than their through-hole equivalents. SMD LEDs are widely used nowadays. They provide higher lumen output, which improves the level of illuminance in the area. They are more efficient and brighter. This is the reason SMD LED PCB boards are preferred.
LAYER | PROTOTYPE | MASS PRODUCTION (above 20 m2) | |
Quick Turn | Standard Time | ||
MC PCB | 48 hours | 4-5 days | 10-12 days |
PFC 1 L | 48 hours | 5-6 days | 12-13 days |
1L | 24 hours | 3-4 days | 8-10 days |
2L | 24 hours | 3-4 days | 8-10 days |
4L | 48 hours | 5-6 days | 8-10 days |
6L | 72 hours | 6-7 days | 10-12 days |
8L | 72 hours | 7-8 days | 12-14 days |
10L | 96 hours | 9-10days | 16-18 days |
One-stop Service Include
PCB Prototype | Quick Turn PCB | Single-Sided PCB |
Double-Sided PCB | Multilayer PCB | Rigid PCB |
Flexible PCB | Rigid-Flex PCB | LED PCB |
Aluminum PCB | Metal Core PCB | Thick Copper PCB |
HDI PCB | BGA PCB | High TG PCB |
PCB Stencil | Impedance Control PCB | PCB Assembly |
High-Frequency PCB | Bluetooth Circuit Board | Automotive PCB |
USB Circuit Board | Halogen-Free PCB | Antenna PCB |
|
|
