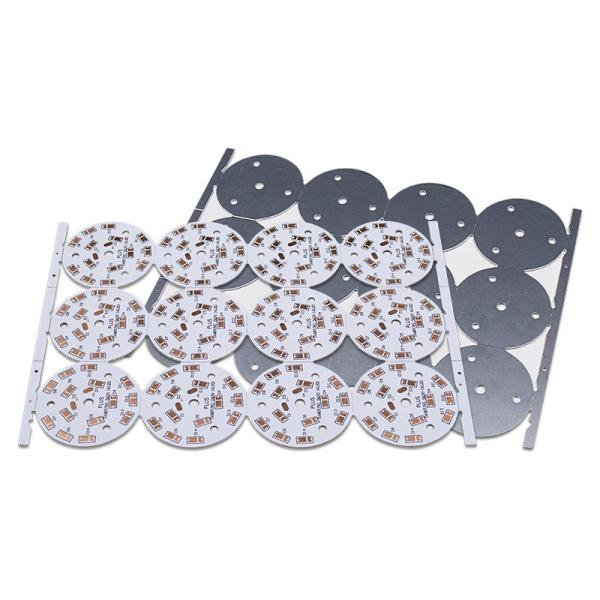

100W 120W 500W 1000W 3030 LED Grow Light Metal Core Printed Circuit Board
| Feature | Capability |
| Quality Grade | Standard IPC 2 |
| Number of Layers | 4 - 24layers |
| Order Quantity | 1pc - 10000+pcs |
| Build Time | 2days - 5weeks |
| Material | Aluminum core (Domestic 1060), Copper core, FR4 covering |
| Board Size | Min 6*6mm | Max 610*610mm |
| Board Thickness | 0.8mm - 5.0mm |
| Copper Weight (Finished) | 0.5oz - 10.0oz |
| Min Tracing/Spacing | 4mil/4mil |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Surface Finish | HASL - Hot Air Solder Leveling Lead Free HASL - RoHS ENIG - Electroless Nickle/Immersion Gold - RoHS |
| Min Annular Ring | 4mil |
| Min Drilling Hole Diameter | 6mil |
| Other Techniques | Countersink holes Screw holes |
* The above thickness excludes the thickness of resin and the
thickness of copper and Aluminum can be combined arbitrarily.
* The thickness of copper foil: H oz. - 5.0 oz. The thickness of
aluminum plate: 0.2 - 5.0mm.
* Halogen free material.
* Compliance with RoHS and REACH.
- Good thermal performance and long life
- Good thermal conductivity and insulation
- Low cost -Energy efficient and recyclable
- Easy to assemble
- High durability
- Lightweight
The manufacturing process for nearly all-aluminum PCBs is essentially the same. Here we will discuss the major manufacturing processes, the difficulties, and their solutions.
Copper Etching: the copper foil used in Aluminum PCBs is comparatively thicker. If the copper foil is over 3oz, however, the etching requires width compensation. If it is not according to the demand of the design, the trace width will be out of tolerance after etching. Therefore the trace width compensation should be designed accurately. The etching factors need to be controlled during the manufacturing process.
Solder Mask Printing: due to the thick copper foil there is a difficulty in solder mask printing of aluminum PCB. This is because if the trace copper is too thick then the image etched will have a large difference between trace surface and baseboard and solder mask printing will be difficult. Therefore, two-time solder mask printing is used. The solder mask oil used should be of good quality and in some cases, the resin filling is done first and then solder mask.
Mechanical Manufacturing: the mechanical manufacturing process involves mechanical drilling, molding and v-scoring, etc. which Is left on internal via. This tends to reduce electrical strength. Therefore, electric milling and professional milling cutter should be utilized for the low-volume manufacturing of products. The drilling parameters should be adjusted to prevent burr from generating. This will help your mechanical manufacturing.
|
|
