100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board

Shenzhen Yizhuo Electronics Co., Ltd
Contact Now
    Buy cheap 100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board from wholesalers

    Buy cheap 100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board from wholesalers
    • Buy cheap 100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board from wholesalers

    100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board

    Ask Lasest Price
    Brand Name : Yizhuo
    Model Number : LED PCB Board 12
    Certification : CE,ROHS,UL
    Payment Terms : T/T, Western Union
    Delivery Time : 10-12 work days
    • Product Details
    • Company Profile

    100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board

    100W 120W 500W 1000W 3030 LED Grow Light Aluminum PCB Board

    1. Introduction

    As a kind of single-sided Aluminum PCB, LED PCB is widely used in street lamps, LED lamps, and household lamps.


    2. Material: Aluminum-base PCB

    ItemUnitSpecificationTest condition
    Insulation thicknessum

    Max

    Min

    200

    60

    Solder resistance (288℃)Sec.Min600IPC-TM-650 2.4.13.1
    Thermal shock288℃10”/cycleMin6 TimesIPC-TM-650 2.4.13.1
    Peel strength (Normal status)lb/inMin9IPC-TM-650 2.4.8
    Breakdown VoltageV/mil750IPC-TM-650 2.5.6
    Volume resistivity (Normal status>E+14)Ω · cm1.8*1015IPC-TM-650 2.5.17.1
    Surface resistivity (Normal status>E+12)Ω3.5*1014IPC-TM-650 2.5.17.1

    Dielectric constant

    1 MHz Normal status

    1 GHz Normal status

    5.6

    5.3

    IPC-TM-650

    2.5.5.3

    2.5.5.5

    2.5.5.6

    Dissipation constant

    1 MHz Normal status

    1 GHz Normal status

    0.013

    0.010

    IPC-TM-650

    2.5.5.3

    2.5.5.5

    2.5.5.9

    Water absorption%0.2IPC-TM-650 2.6.2.1

    Thermal conductivity

    (measured on insulation layer only)

    W/m℃1.0ASTM-E1461
    Flammability94V-0PassIPC-TM-650 2.3.9
    Tg100IPC-TM-650 2.4.24
    Td410TBD (5wt% loss)
    MOT (RTI)130UL746B
    CTI (Comparative Tracking Index)V>600 (PLC=0)UL746E DSR

    3. Certification: UL, ROHS, Reach, ISO
    4. Use range: Lighting, Automotive electronic equipment, Power supply, Electronic control, Computer equipment, Communication electronics etc.
    5. What exhibitions have we participated in?
    New Delhi Exhibition, Moscow Electronic Exhibition, etc.


    6. Our Services
    1. Quick response
    2. Reasonable price based on good quality
    3. Provide one-stop service (components, OEM)
    4. Abundant inventory & Habitual material preparation


    7. Payment method:
    T/T, Paypal, credit card, Western Union, etc.

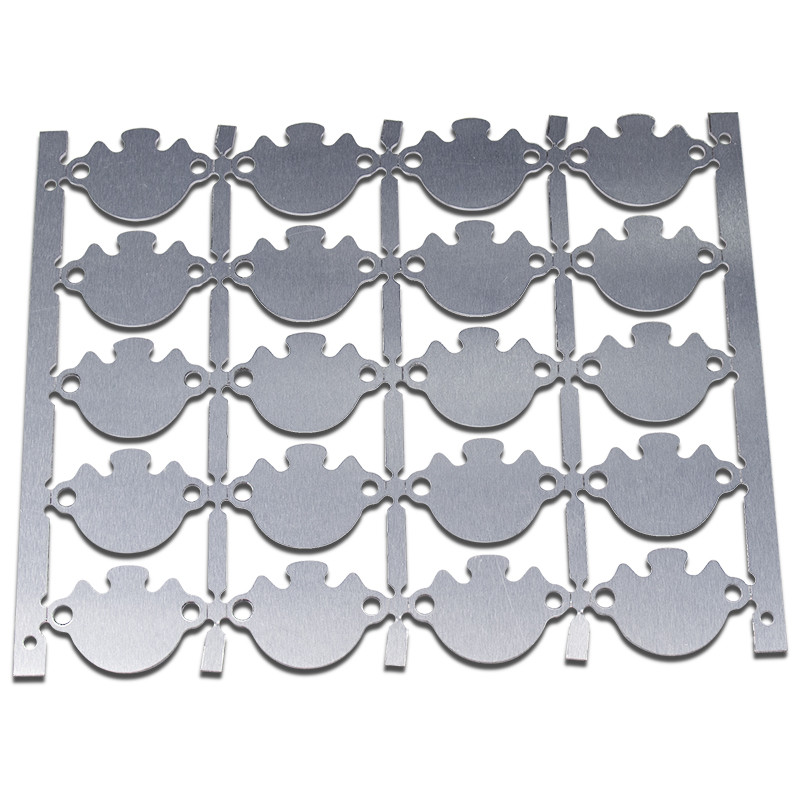

    100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board

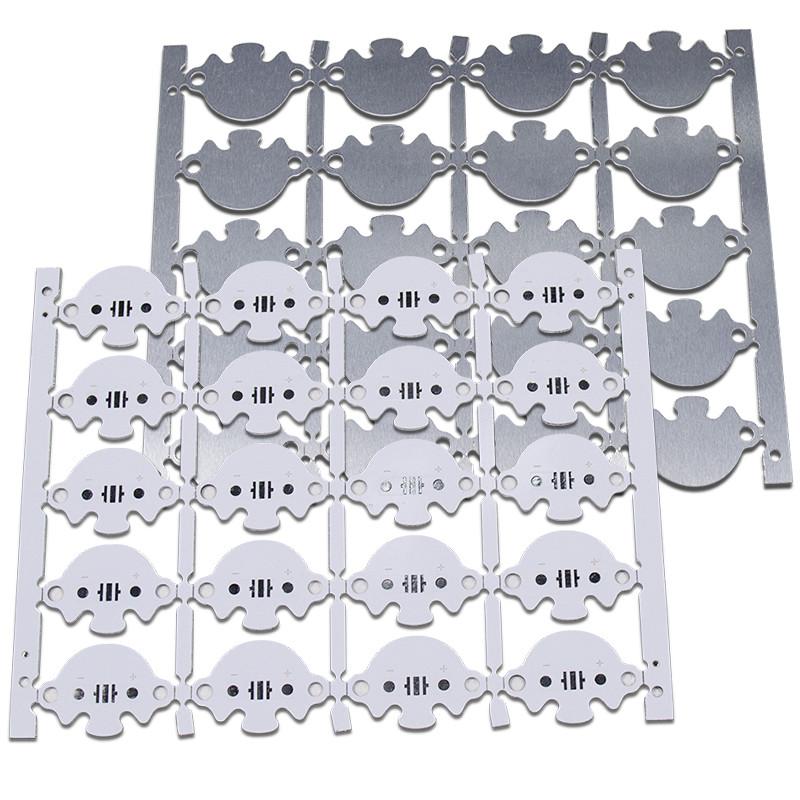

    100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board


    Aluminum Pcb Board is one type of metal core printed circuit board (MCPCB), widely be used in LED lighting industry.

    If you are looking for Aluminum PCB Manufacturer, Yizhuo has rich experience in manufacturing Aluminium PCB with high thermal conductivity , we offers a first class service and extensive high-tech options.


    100 120 500 1000W 3030 LED Grow Light Aluminum PCB Board


    FAQ:

    Q1. What service do you have?

    A: We can offer one-stop service from PCB manufacturing to PCB assembling, testing,Soldering wire ,Coating and other value-added service.


    Q2. Is it OK to print my logo on product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


    Q3. How can I get a sample to check your quality?

    A: After price confirmation,you can place orders for samples for your testing and evaluation.
