Brand Name : | Yizhuo |
Model Number : | Led Tube Pcb Light Board |
Certification : | CE,ROHS,UL |
Payment Terms : | T/T, Western Union |
Delivery Time : | 10-12 work days |

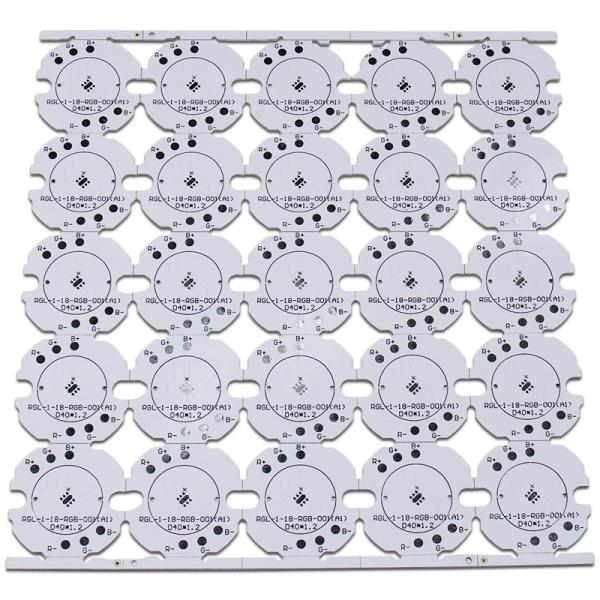

Led Tube Pcb Light Board Aluminum Led Pcb for Street Light
PCBA Capabilities | |
Turnkey PCBA | PCB+components sourcing+assembly+package |
Assembly details | SMT and Thru-hole, ISO SMT and DIP lines |
Lead Time | Prototype: 15 work days. Mass order: 20~25 work days |
Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, Functional test |
Quantity | Min quantity: 1pcs. Prototype, small order, mass order, all OK |
Files needed | PCB: Gerber files(CAM, PCB, PCBDOC) |
Components: Bill of Materials(BOM list) | |
Assembly: Pick-N-Place file | |
PCB Panel Size | Min size: 0.25*0.25 inches(6*6mm) |
Max size: 20*20 inches(500*500mm) | |
PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
Components details | Passive Down to 0201 size |
BGA and VFBGA | |
Leadless Chip Carriers/CSP | |
Double-sided SMT Assembly | |
Fine Pitch to 0.8mils | |
BGA Repair and Reball | |
Part Removal and Replacement | |
Component package | Cut Tape,Tube,Reels,Loose Parts |
PCB assembly process | Drilling-----Exposure-----Plating-----Etaching &
Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
PCB LED lights can be incorporated into numerous lighting
applications due to their combination of excellent energy
efficiency, low cost and maximum design flexibility. Examples
include Automotive headlights, Airport runway landing lights,
Lighting used in military field applications, Street lighting,
Highway tunnel lighting, Photovoltaic (solar) lighting, Flashlights
and lanterns, Traffic and signal lighting, Lighting in hospital
operating rooms, Led grow lighting and many others.
If you are looking for a resource that will provide you with Single
Sided PCB for LED Tube Light, PCB For LED Spotlight, PCB For LED
Lamp, PCB for LED high bay, PCB for LED downlight, PCB board for
LED tube, then you have just found it.
Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012
years, Our factory area more than 5,000 square meters. We have more
than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB
manufacturer,our products are widely used in lighting, Electronics,
New Energy, Medical care ,Automotive and Other industries.Our PCB
production capacity can reach 120000 sq.m/per month .
FAQ:
Q1. Do you have MOQ limited?
A: We don’t have any MOQ limited, the minimum order we accept is
1pcs.
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL ,
SGS, ROHS.
Q3: How about the Shipping cost?
A: The shipping cost is determined by the destination, weight,
packing size of the goods. Please let us know if you need us to
quote you the shipping cost.
![]() |
