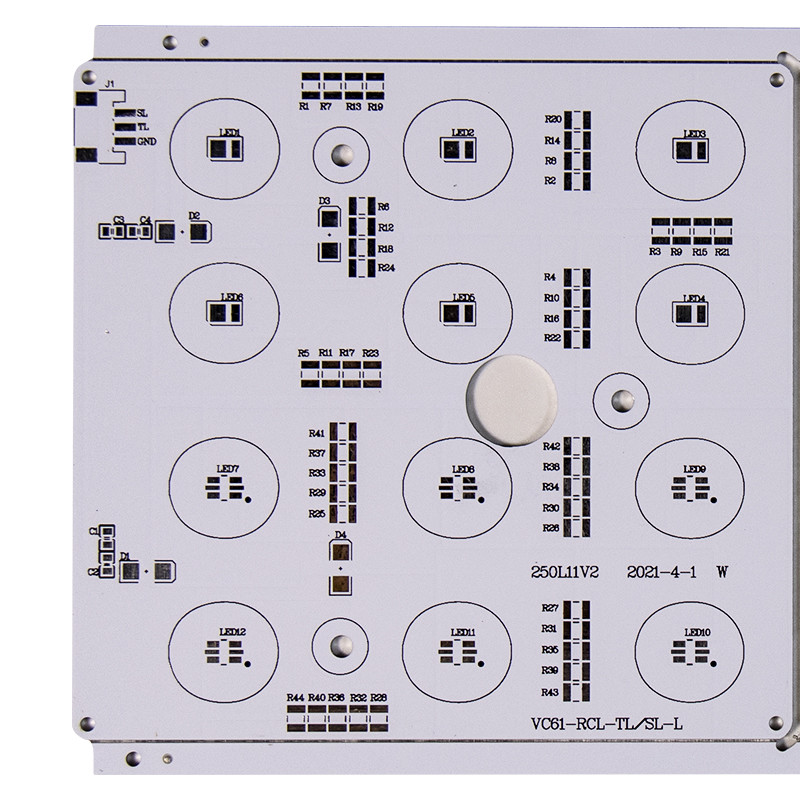

    Heat Dissipation Metal Clad FR4 PCB Board Aluminum LED Lighting Controller

    Ask Lasest Price
    Brand Name : Yizhuo
    Model Number : Aluminum Pcb Board 01
    Certification : CE,ROHS,UL
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 10-12 work days
    • Product Details
    • Company Profile

    Heat Dissipation Metal Clad FR4 PCB Board Aluminum LED Lighting Controller

    Heat Dissipation Metal Clad FR4 PCB Board Aluminum LED Lighting Controller


    Metal Clad Pcb Led Design Led Lighting Controller Led Lighting Industry


    Why LED PCB?

    FR-4 is less expensive than metal-core PCBs, but still, it is not preferred. The reason is that LEDs give off too much heat, so it’s necessary to have an excellent heat dissipation capability. FR-4 does not have that capability. Moreover, even if you want to use high heat-dissipating components in FR-4, you need to use heat sinks that take more space on the board. In contrast, aluminum can dissipate heat efficiently, and there is no need to use heat sinks because the base material is more than enough. The dielectric layer transfers the heat to the aluminum layer, and the PCB can efficiently dissipate a high volume of heat without any hassle. This is the reason components can work for a more extended period. Moreover, aluminum can withstand high temperatures; it does not bend or deteriorate. An LED PCB is more durable and long-lasting; therefore, it is preferred.



    LAYER

    PROTOTYPE

    MASS PRODUCTION (above 20 m2)

    Quick Turn

    Standard Time

    MC PCB

    48 hours

    4-5 days

    10-12 days

    PFC 1 L

    48 hours

    5-6 days

    12-13 days

    1L

    24 hours

    3-4 days

    8-10 days

    2L

    24 hours

    3-4 days

    8-10 days

    4L

    48 hours

    5-6 days

    8-10 days

    6L

    72 hours

    6-7 days

    10-12 days

    8L

    72 hours

    7-8 days

    12-14 days

    10L

    96 hours

    9-10days

    16-18 days

    Heat Dissipation Metal Clad FR4 PCB Board Aluminum LED Lighting Controller


    Heat Dissipation Metal Clad FR4 PCB Board Aluminum LED Lighting Controller
