Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB
5 Years
| Ask Lasest Price | |
| Brand Name : | Yizhuo |
| Model Number : | FR4 pcb board02 |
| Certification : | UL,CE,ROHS |
| Payment Terms : | T/T |
| Supply Ability : | 120000 sq.m/per month |
| Delivery Time : | 10-12 work days |

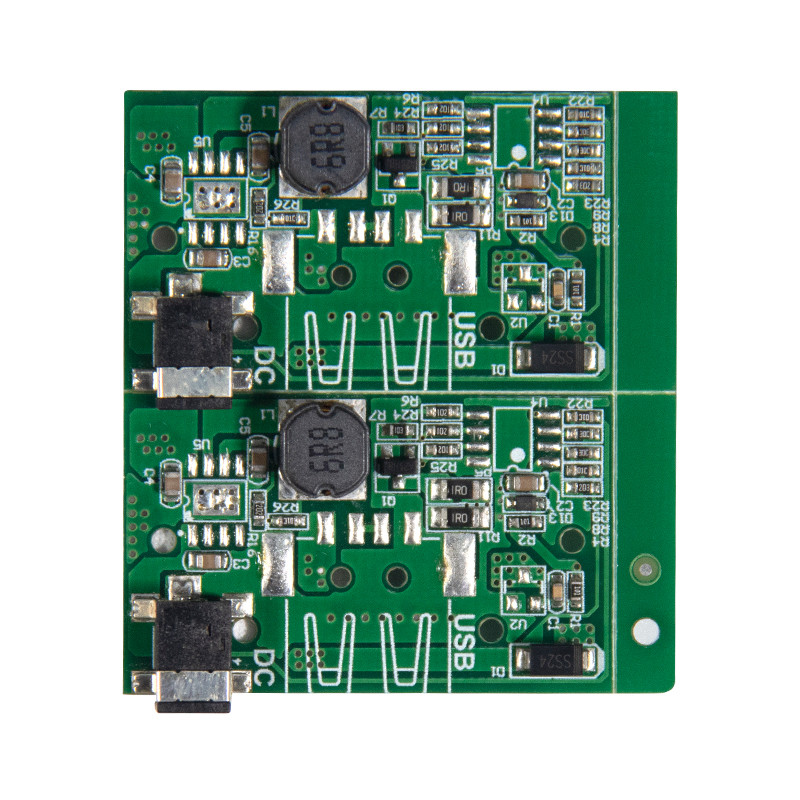

OEM FR4 Phone PCB Board Multilayer Circuit Boards One Stop Services
Electronics phone pcb board multilayer pcb circuit boards One-stop services
Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, Functional test |
Quantity | Min quantity: 1pcs. Prototype, small order, mass order, all OK |
Files needed | PCB: Gerber files(CAM, PCB, PCBDOC) |
Components: Bill of Materials(BOM list) | |
Assembly: Pick-N-Place file | |
PCB Panel Size | Min size: 0.25*0.25 inches(6*6mm) |
Max size: 20*20 inches(500*500mm) | |
PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
Components details | Passive Down to 0201 size |
BGA and VFBGA | |
Leadless Chip Carriers/CSP | |
Double-sided SMT Assembly | |
Fine Pitch to 0.8mils | |
BGA Repair and Reball | |
Part Removal and Replacement | |
PCB assembly | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
The double sided PCB board is a board with double-sided wiring on the board. An important feature of the double sided prototype PCB is that it has a guide hole to connect the wires on both sides into a circuit.
The double-panel wiring can be staggered with each other, which is the biggest difference from a single-panel; the double-panel is more suitable for complex circuits and has a wider range of use.
The cost of single and double panels is not much different. If there is no special requirement, all industries will give preference to double panels; after all, the performance and stability of double panels are better than single panels.
FAQ:
Q1. What service can you supply ?
A: We are OEM PCB and PCBA manufacturer since 2012 ,we can provide
one-stop solution including RD PCB fabrication,SMT and assembly
PCBA.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for
your testing and evaluation.
Q3: Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
|
|
