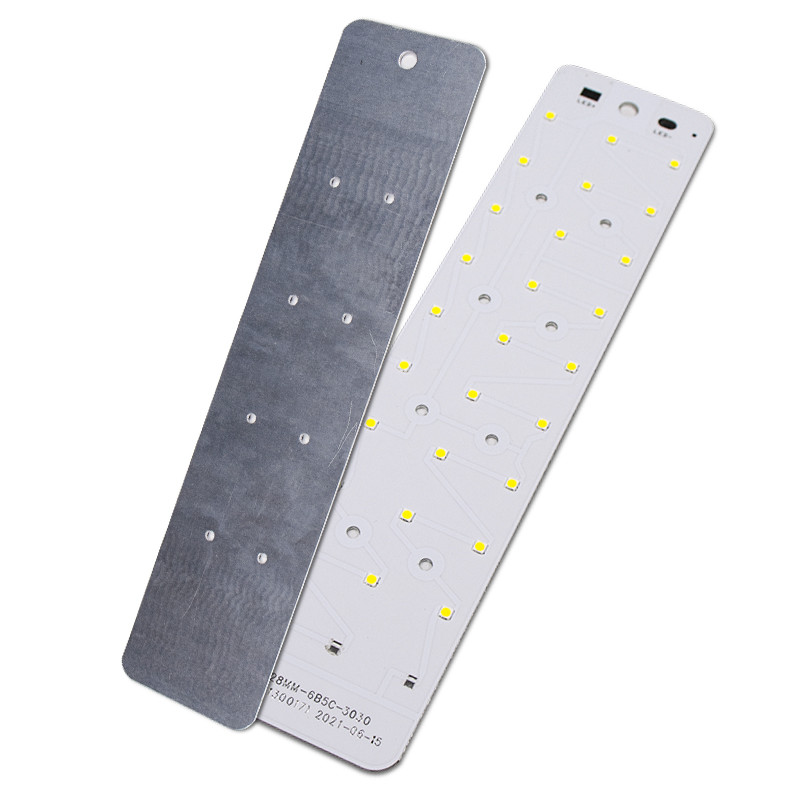

94v0 aluminum pcb custom 3030 2835 led chips mcpcb board for T8 tube

• Thick Copper Foil Etching

Aluminum PCBs are usually applied in power devices with high power density so copper foil is relatively thick. When copper foil is 3oz thick or more, copper foil etching requires trace width compensation. Otherwise, trace width will be out of tolerance after etching. Therefore, to guarantee optimal trace width/spacing and impedance control that are able to meet design demands, the following work has to be finished in advance.
a. Trace width compensation should be appropriately designed.
b. The effect of trace manufacturing on trace width/spacing should be eliminated.
c. Etching factors and agent parameters should be rigorously controlled.

• Solder Mask Printing

Solder mask printing is regarded as a manufacturing difficulty of aluminum PCB fabrication due to effect of thick copper foil. If trace copper thickness is extraordinary after image etching, a large difference will be generated between trace surface and base board and solder mask will become difficult. To ensure smooth solder mask printing, the following principles should be conformed to:
a. Solder mask oil should be picked up with high-quality performance.
b. Two-time solder mask printing is used.
c. When necessary, the manufacturing method of resin filling first and solder mask second is relied on.

• Mechanical Manufacturing

Mechanical manufacturing of aluminum PCBs contain mechanical drilling, milling and molding and v-scoring and burr tends to be left on internal via, which will reduce electric strength. Therefore, to ensure high-quality mechanical manufacturing, the following principles should be stuck to:
a. Electric milling and professional milling cutter should be picked up for low-volume production.
b. Control technique and pattern should be noticed in the process of die molding.
c. Drilling parameters should be appropriately adjusted on thick-copper aluminum PCBs to prevent burr from generating.

Application areas of aluminum PCBs:

1. General lighting applications (Streetlight , Flashlight, Spotlight, etc.)

2. Back light unit applications

3. System automotive LED applications

4. Power converters: telecom, high voltage regulator, power supplies

5. Hybrid/electric motor control applications

FAQ:

Q1. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.

Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for your testing and evaluation.

Q3: What service do you have?

A: We are providing pcb fabrication, components purchasing, pcb assembly, complete assembly.
