    Thick 1.0mm 1.6mm Single Sided PCBs OSP LED Light Circuit Boards

    Thick 1.0mm 1.6mm Single Sided PCBs OSP LED Light Circuit Boards

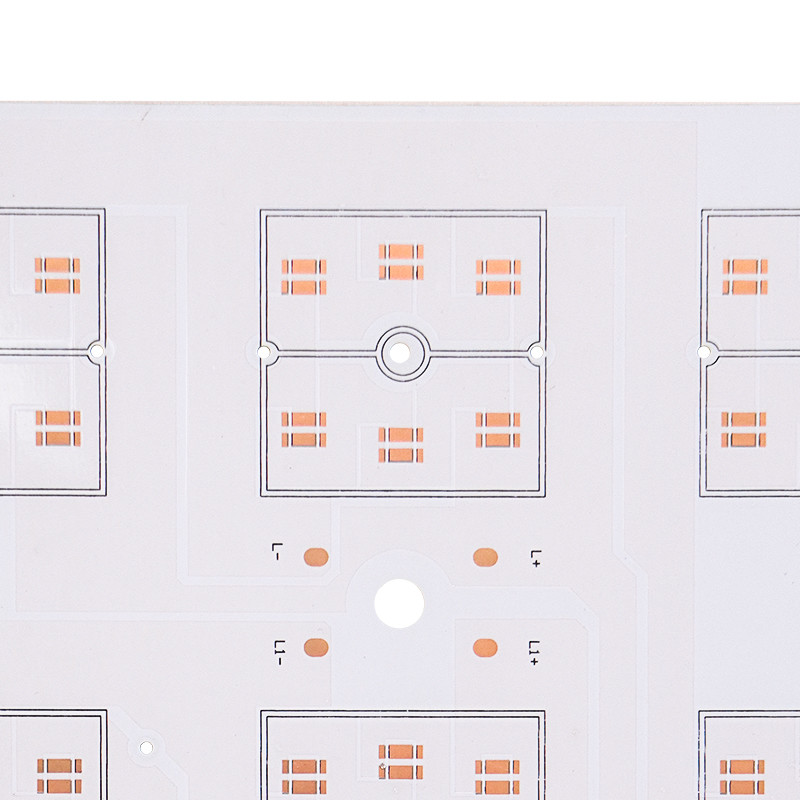

    OSP surface finished Aluminum material led pcb board Circuit Board


    Introduction of Aluminum PCB:

    Aluminum PCB is the PCB type that used the low alloyed Al-Mg-Si with high plasticity alloy plate as the substrate material that has better thermal conductivity, electrical insulation, and machining performance, compared with the traditional FR4 PCB.


    Similar to other types of PCBs, Aluminum PCB is structured by the conductive layer (copper layer); insulation layer (dielectric layer); and the substrate layer.


    Aluminum PCB is capable to stand higher current with the same thickness and line width. Aluminum PCB is able to withstand voltage up to 4500V and thermal conductivity is more than 2.0. At present, aluminum PCB is the most common type for LED lighting PCB applications.


    Common LED PCB has two sides. The top side with white solder mask is used for soldering SMD LED beads, and the other side normally has no solder mask and showing as aluminum metal color. If there is a demand for high-power heat dissipation, the aluminum base can also be coated with a thermal conductive silicone grease layer to connect with the installed heatsinks for better heat dissipation.


    1
    Description
    PCB Specification
    2
    Material
    FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum
    3
    Layer
    1-20
    4
    Board Thickness
    0.2mm- 4.0mm
    5
    Board Thickness Tolerance
    +/-10%
    6
    Copper thickness
    17.5um-175um (0.5oz-5oz)
    7
    Min Trace Width
    0.15mm
    8
    Min Space Width
    0.15mm
    9
    Min Drilling Dia
    0.2mm
    10
    PTH copper thickness
    0.4-2mil(10-50um)
    11
    Tolerance of Etching
    ±1mil(±25um)
    12
    V-cut angle
    25°,30°,45°,60°
    13
    Pearl Strength of line
    ≥ 6lb/in(≥ 107g/mm)
    14
    Impedance control and tolerance
    50Ω±10%
    15
    Twist&Wrap
    ≤ 0.5%
    16
    Soldermask
    Green, Red, Blue, White, Black, Yellow
    17
    Surface Finish/Plating
    HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG

    Thick 1.0mm 1.6mm Single Sided PCBs OSP LED Light Circuit Boards

    Thick 1.0mm 1.6mm Single Sided PCBs OSP LED Light Circuit Boards


    FAQ:

    Q1. Are you a factory or trade company?

    A: We have our own PCB manufacturing & Assembly factory.


    Q2: Are all your products certified with UL, ROHS etc?

    A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.


    Q3: How about the Shipping cost?

    A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
