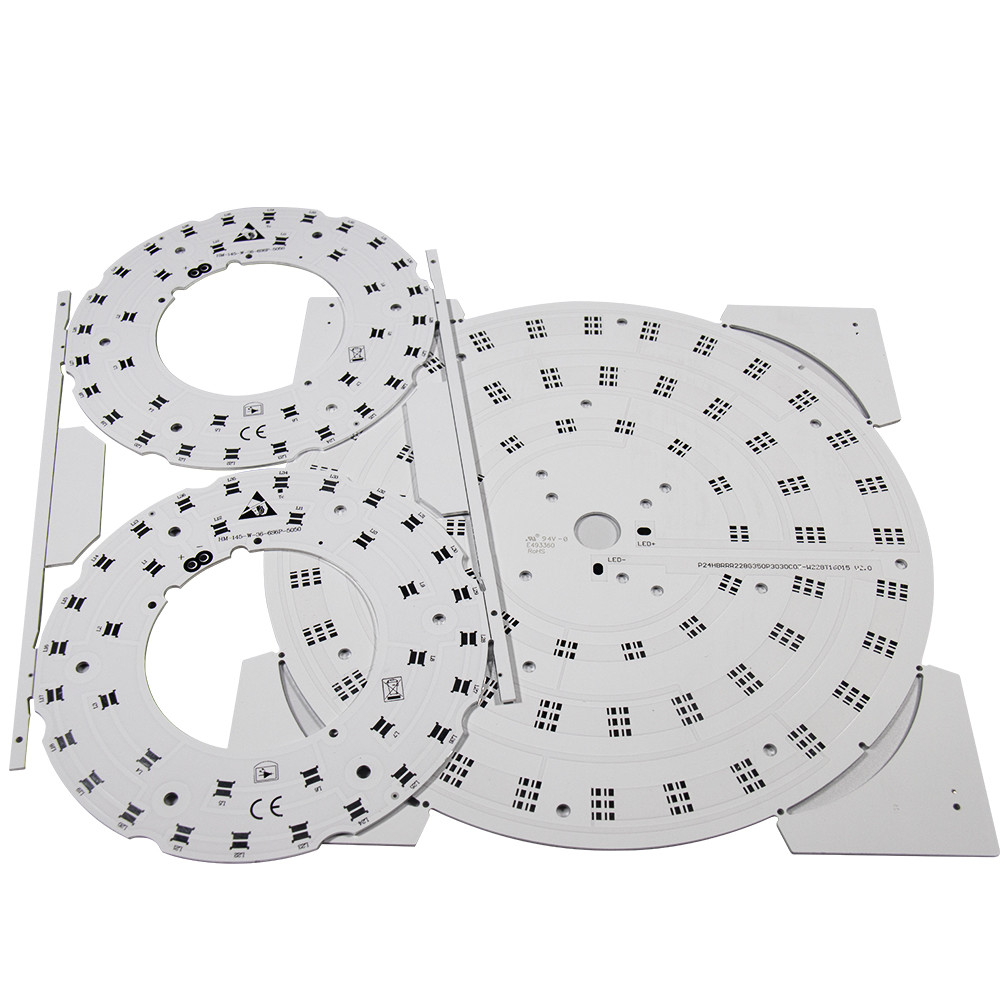

OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration

Shenzhen Yizhuo Electronics Co., Ltd
Contact Now
    Buy cheap OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration from wholesalers

    Buy cheap OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration from wholesalers
    • Buy cheap OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration from wholesalers
    • Buy cheap OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration from wholesalers
    • Buy cheap OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration from wholesalers

    OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration

    Ask Lasest Price
    Brand Name : Yizhuo
    Model Number : Single-sided PCB 02
    Certification : UL,CE,ROHS
    Payment Terms : T/T
    Supply Ability : 120000 sq.m/per month
    Delivery Time : 10-12 work days
    • Product Details
    • Company Profile

    OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration

    OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration


    OEM PCB Circuit Boards LED 94v0 Aluminum PCB for Illumination Lighting


    Product Specification

    Layers

    1 Layer

    Material

    Aluminum

    Application

    LED

    Copper thickness

    1oz

    Board thickness

    1.6mm

    Min. Hole Size

    4mm

    Min. Line Width

    39mil

    Min. Line Spacing

    22mil

    Surface Finish

    LF_HASL

    S/M Color

    White

    Legend Color

    Black

    Special Process

    HDI, BVH, back drill, pressfit hole, edge plating, VOP, counter sunk, half hole, gold plating, gold finger, ENIG+OSP, flex board, rigid-flex board


    ●Single Sided PCB:
    Single-Sided Aluminum PCB is divided into three layers, aluminum, insulating layer, and copper. Aluminum is for heat dissipation, insulating layer is for heat conduction, and copper is for conduction. Generally, one side is printed with circuit, the other side is smooth wireless circuit. The most common aluminum pcb on the market is a single-sided aluminum PCB. Compared with the traditional FR-4 pcb, it adopts the same thickness and the same line width, and the aluminum substrate can carry higher current.


    ●Product Features:

    1. Good thermal conductivity, electrical insulation properties and mechanical processing properties.

    2. Single-Sided Aluminum PCB meets RoHs requirements.

    3. Good mechanical durability, better than ceramic circuit boards made by some simple processes.


    ● Product Application:

    Single-Sided Aluminum PCB is mainly used in input and output amplifiers, balanced amplifiers, audio amplifiers, pre-amplifiers, power amplifiers, inverter, solid state relay, rectifier bridge, etc.

    OEM LED 94v0 Single Sided PCBs For Illumination Lighting DecorationOEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration

    Applications:

    1. Indoor out door decoration.

    2. Architectural and boutique atmosphere lighting.

    3. channel letter lighting.

    4. Emergency & security, advertisement sign lighting.

    5. Holiday Decoration.




    OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration

    OEM LED 94v0 Single Sided PCBs For Illumination Lighting Decoration
