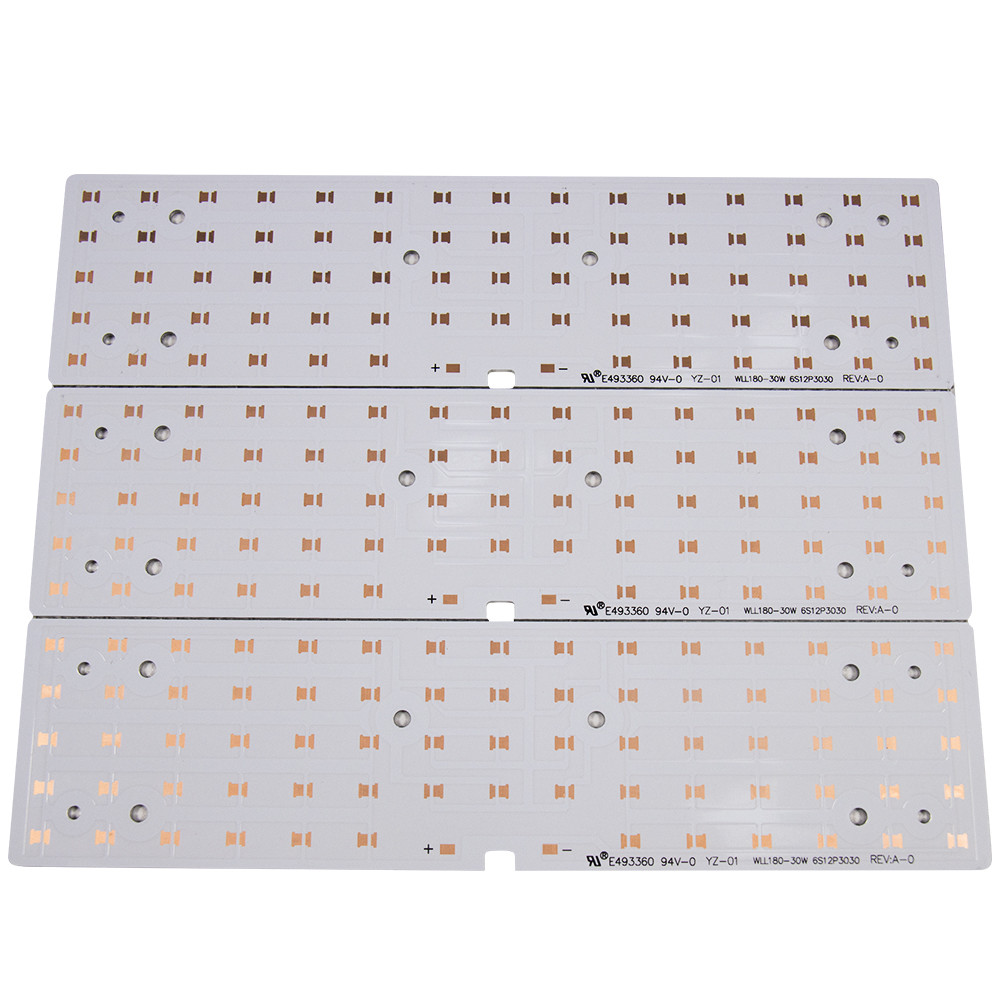

Customized single-side round aluminum pcb 12v led light circuit board
Customized Round Single Sided PCBs 12v Led Light Circuit BoardCustomized Round Single Sided PCBs 12v Led Light Circuit Board
| Material Type | aluminum |
| Board Thickness | 0.5~3.2mm |
| PCB Board Layer | single-sided |
Copper Thickness | 1oz~4oz |
| PCB Silkscreen Color | black |
| PCB Surface Finish | OSP |
| Test Method | flying-probe/test rig/test fixture |
| Production Needed Files | gerber files&Bom list/Firmware |
| Keywords | PCB design |
| Min. Line Spacing | 0.1mm |
| Minimum Line Width | 0.1mm |
Single Sided PCB:
Single sided PCB is only printed circuit on one side of the
substrate, also known as printed etching board. Etch resist is
usually printed by screen printing technology, and the conductor
pattern is formed by chemical etching to remove the exposed copper
foil.
Typical material of single sided printed circuit board
This circuit board manufacturing method is generally used in
low-cost, mass, and relatively less functional device. Most of the
single-sided PCB is made from the lowest cost paper substrate, and
the most popular paper based flame retardant phenolic resin XPC is
used. It is a kind of laminates with high punching properties.
On the other hand, many materials can be used for single sided PCB
according to its actual applications. For example, FR-4 is often
seen in our home appliances, CEM-1 and FR-1 are often seen in the
toys, aluminum substrate in LED lighting and polyimide in the
flexible PCB etc.

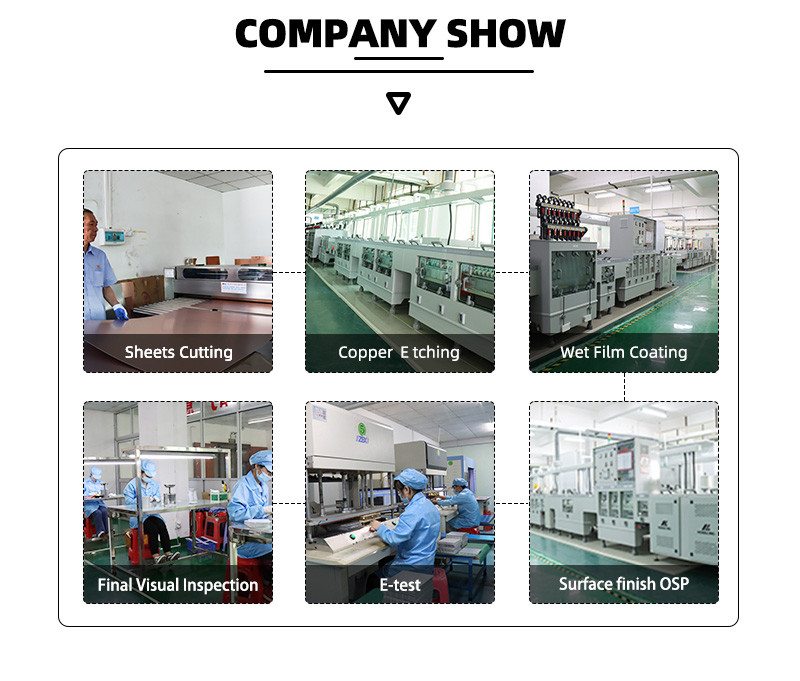

Manufacturing process of single side circuit board Generally, a highly automated production and conveyor belt printing and etching production line is adopted for mass production. The basic process is as follows. Step 1, Saw or cut the substrate to the appropriate size of the plate. Step 2, Put the laminate into the loader and send it to the production line. Step 3, Clean the surface of laminate. Step 4, Use UV curable anticorrosion ink for surface screen printing. Step 5, Solidified anticorrosion ink. Step 6, Etch exposed copper. Step 7, Strip anticorrosion ink. Step 8, Coat solder mask ink. Step 9, Print component text. Step 10, Drill or punch holes. Step 11, Test open/short circuit Step 12, Pack boards and make delivery. The speed of the automatic printing and etching line conveyor is 35-45 ft/min. Mass production lines are equipped with on-line optical inspection, so that the final electrical open circuit short circuit test can be avoided. |
FAQ:
Q1. What file formats do you accept for PCB PCBA production?
A. Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Pick and place file
Q2. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000
sqm factory space hosts R&D, marketing, logistics and
procurement operations.
Q3: What about the transportation and delivery date?
A: Normally,we use international express(such as,Fedex,DHL,TNT) to deliver samples and small volume orders. For large mass order, we can arrange shipping by sea.
|
|
