diy led pcb Metal surface mount pcb assembly High Power Led Pcb Led Pcb Design
1. Introduction
As a kind of single-sided Aluminum PCB, LED PCB is widely used in street lamps, LED lamps, and household lamps.
2. Material: Aluminum-base PCB
| Item | Unit | Specification | Test condition | |
| Insulation thickness | um | Max Min | 200 60 | — |
| Solder resistance (288℃) | Sec. | Min | 600 | IPC-TM-650 2.4.13.1 |
| Thermal shock | 288℃10”/cycle | Min | 6 Times | IPC-TM-650 2.4.13.1 |
| Peel strength (Normal status) | lb/in | Min | 9 | IPC-TM-650 2.4.8 |
| Breakdown Voltage | V/mil | 750 | IPC-TM-650 2.5.6 | |
| Volume resistivity (Normal status＞E+14) | Ω · cm | 1.8*1015 | IPC-TM-650 2.5.17.1 | |
| Surface resistivity (Normal status＞E+12) | Ω | — | 3.5*1014 | IPC-TM-650 2.5.17.1 |
Dielectric constant 1 MHz Normal status 1 GHz Normal status | — | 5.6 5.3 | IPC-TM-650 2.5.5.3 2.5.5.5 2.5.5.6 | |
Dissipation constant 1 MHz Normal status 1 GHz Normal status | 0.013 0.010 | IPC-TM-650 2.5.5.3 2.5.5.5 2.5.5.9 | ||
| Water absorption | % | 0.2 | IPC-TM-650 2.6.2.1 | |
Thermal conductivity (measured on insulation layer only) | W/m℃ | 1.0 | ASTM-E1461 | |
| Flammability | 94V-0 | Pass | IPC-TM-650 2.3.9 | |
| Tg | ℃ | 100 | IPC-TM-650 2.4.24 | |
| Td | ℃ | 410 | TBD (5wt% loss) | |
| MOT (RTI) | ℃ | 130 | UL746B | |
| CTI (Comparative Tracking Index) | V | ＞600 (PLC=0) | UL746E DSR |
3. Certification: UL, ROHS, Reach, ISO
4. Use range: Lighting, Automotive electronic equipment, Power
supply, Electronic control, Computer equipment, Communication
electronics etc.
5. What exhibitions have we participated in?
New Delhi Exhibition, Moscow Electronic Exhibition, etc.

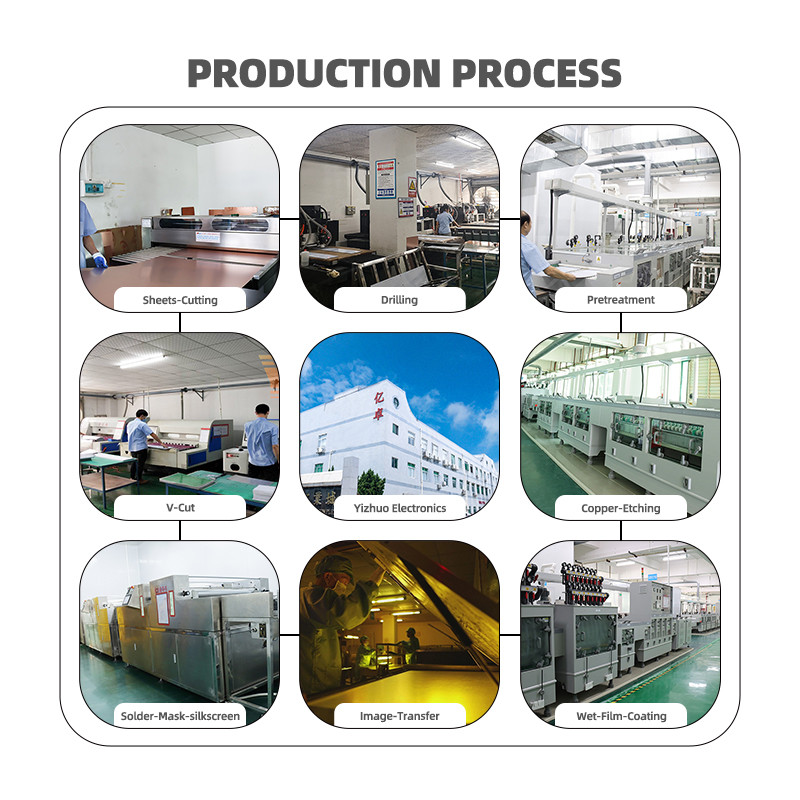

6. Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation
7. Payment method:
T/T, Paypal, credit card, Western Union, etc.
Metal substrate
What kind of metal is used for the insulating metal substrate depends on the comprehensive consideration of the thermal expansion coefficient, thermal conductivity, strength, hardness, weight, surface state and cost of the metal substrate.
In general, considering the conditions such as cost and technical performance, aluminum plate is an ideal choice. Available aluminum plates are 6061, 5052, 1060 and so on. If there are higher requirements for thermal conductivity, mechanical properties, electrical properties and other special properties, copper plates, stainless steel plates, iron plates and silicon steel plates can also be used.
Application of Aluminum PCB
1. Audio device: Input, output amplifier, balanced amplifier, audio amplifier, pre-amplifier, power amplifier.
2. Power Supply: Switching regulator, DC / AC converter, SW regulator, etc.
3. Communication electronic equipment: High-frequency amplifier, filtering appliances, the transmitter circuit
4. Office automation equipment: Motor drive, etc.
5. Automobile: Electronic regulator, ignition, power supply controller, etc.
6. Computer: CPU board, floppy disk drive, power supply devices, etc.
7. Power Modules: Inverter, solid-state relays, rectifier bridges.
8. Lamps and lighting: As the advocated promotion of energy-saving lamps, a variety of colorful energy-saving LED lights are well received by the market, and aluminum PCB used in LED lights also begin large-scale applications.
|
|
