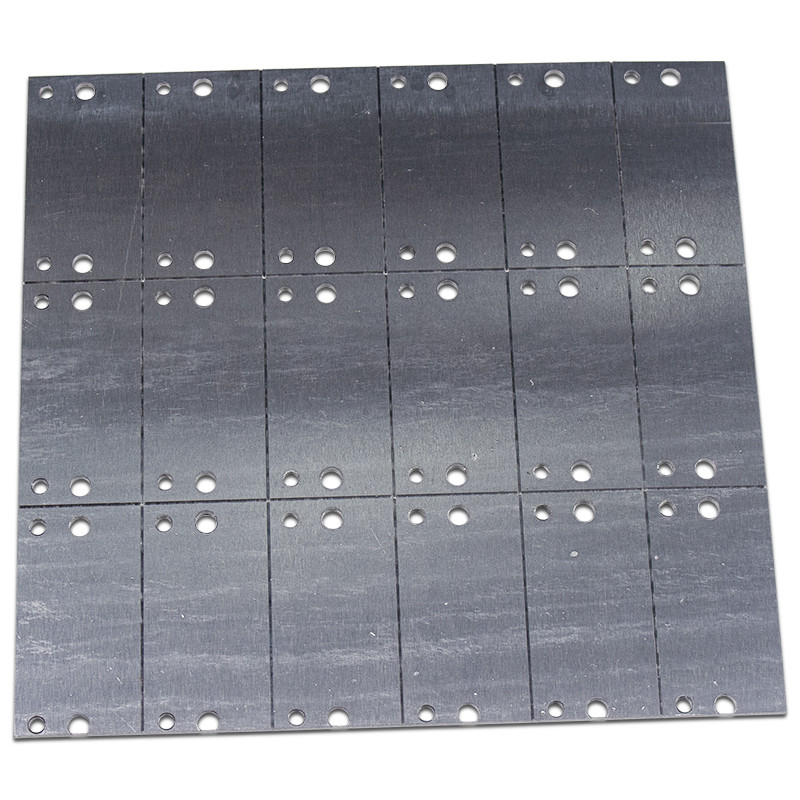

Led Tube Light Pcb Metal 12v led circuit board Design rgb led pcb board
1. Introduction
As a kind of single-sided Aluminum PCB, LED PCB is widely used in street lamps, LED lamps, and household lamps.
2. Material: Aluminum-base PCB
| Item | Unit | Specification | Test condition | |
| Insulation thickness | um | Max Min | 200 60 | — |
| Solder resistance (288℃) | Sec. | Min | 600 | IPC-TM-650 2.4.13.1 |
| Thermal shock | 288℃10”/cycle | Min | 6 Times | IPC-TM-650 2.4.13.1 |
| Peel strength (Normal status) | lb/in | Min | 9 | IPC-TM-650 2.4.8 |
| Breakdown Voltage | V/mil | 750 | IPC-TM-650 2.5.6 | |
| Volume resistivity (Normal status＞E+14) | Ω · cm | 1.8*1015 | IPC-TM-650 2.5.17.1 | |
| Surface resistivity (Normal status＞E+12) | Ω | — | 3.5*1014 | IPC-TM-650 2.5.17.1 |
Dielectric constant 1 MHz Normal status 1 GHz Normal status | — | 5.6 5.3 | IPC-TM-650 2.5.5.3 2.5.5.5 2.5.5.6 | |
Dissipation constant 1 MHz Normal status 1 GHz Normal status | 0.013 0.010 | IPC-TM-650 2.5.5.3 2.5.5.5 2.5.5.9 | ||
| Water absorption | % | 0.2 | IPC-TM-650 2.6.2.1 | |
Thermal conductivity (measured on insulation layer only) | W/m℃ | 1.0 | ASTM-E1461 | |
| Flammability | 94V-0 | Pass | IPC-TM-650 2.3.9 | |
| Tg | ℃ | 100 | IPC-TM-650 2.4.24 | |
| Td | ℃ | 410 | TBD (5wt% loss) | |
| MOT (RTI) | ℃ | 130 | UL746B | |
| CTI (Comparative Tracking Index) | V | ＞600 (PLC=0) | UL746E DSR |
3. Certification: UL, ROHS, Reach, ISO
4. Use range: Lighting, Automotive electronic equipment, Power
supply, Electronic control, Computer equipment, Communication
electronics etc.
5. What exhibitions have we participated in?
New Delhi Exhibition, Moscow Electronic Exhibition, etc.
6. Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation
7. Payment method:
T/T, Paypal, credit card, Western Union, etc.
General introduction of Aluminum PCB
Among all Metal core PCBs, Aluminum PCB is the most common type. The base material consists of an aluminum core and standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCB is regarded as the solution to high power and tight tolerance applications.
Advantages of Aluminum PCB
1. Environmentally Friendly: Aluminum is non-toxic and recyclable. Manufacturing with aluminum is also conducive to conserving energy due to its ease of assembly. For printed circuit board suppliers, using this metal helps maintain the health of our planet.
2. Heat dissipation: High temperatures can cause severe damage to electronics, so it is wise to use a material that can help dissipate heat. Aluminum can actually transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board.
3. Higher durability: Aluminum provides strength and durability to a product that ceramic or fiberglass bases cannot. Aluminum is a sturdy base material that can reduce accidental breakage during manufacturing, handling, and everyday use.
4. Lightweight: For its incredible durability, aluminum is a surprisingly lightweight metal. Aluminum adds strength and resilience without adding on any additional weight.
|
|
