Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB
5 Years
| Ask Lasest Price | |
| Brand Name : | Yizhuo |
| Model Number : | Aluminum Pcb Board 02 |
| Certification : | CE,ROHS,UL |
| Payment Terms : | T/T, Western Union |
| Delivery Time : | 10-12 work days |

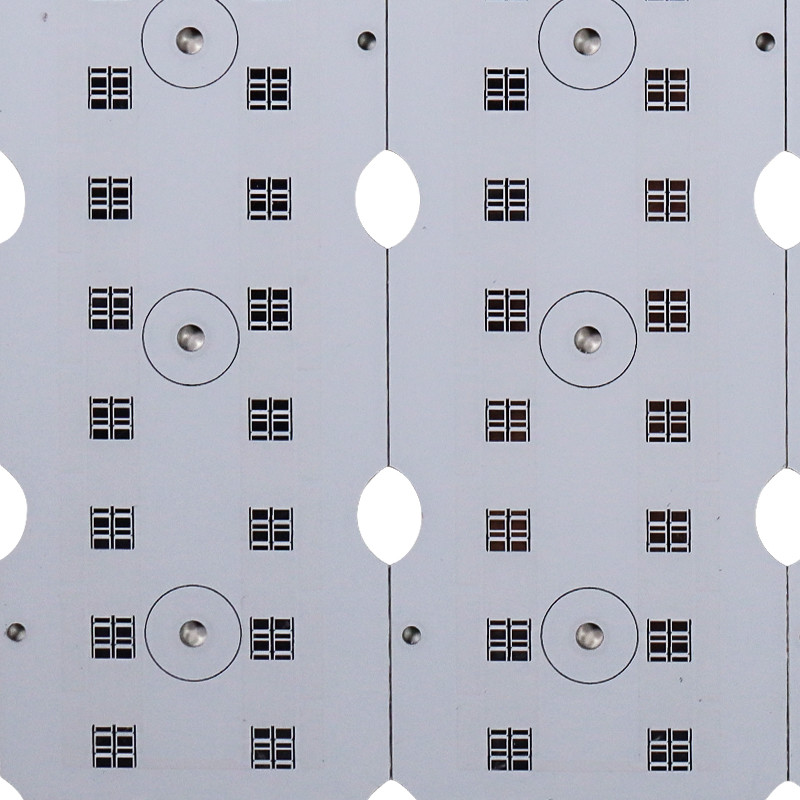

Min Hole Size 0.1mm SMD LED Circuit Board For 12v T5 T8 LED Tube
Smd led pcb circuit board 12v T5 T8 led tube aluminium pcb led panel
Aluminum PCB is the most common type of all Metal Core PCBs (MCPCB), also known as IMS (Isolated Metal Substrate). Aluminum Board is a unique metal-based, copper-clad laminate, with excellent thermal conductivity, high mechanical strength, and dimensional stability.
Copper Thickness | Max 6oz |
Board Thickness | 0.1mm-7.0mm |
Min. Hole Size | 0.1mm |
Min. Line Width | 0.075mm (3mil) |
Min. Line Spacing | 0.075mm (3mil) |
Surface Finishing | HASL,OSP,ENIG, Gold fingers,etc |
Board material | FR-4 Tg130-Tg180/ FR-4 CTI175 / FR-4 CTI300/CEM-1/CEM-3 |
Tolerance | V-cut dept tolerance: +/-0.1mm |
Wrap and twist | 5% |
Minimun thickness of soldermask | 10um |
Soldermask | Green/ White/ Black/ Blue/ Yellow etc. |
Certificate | ISO9001/UL |
Testing Service | AOI X-Ray Function Test |
WHY CHOOSE US:
1. QUALITY
All PCBs are 100% electrical tested. They can pick and send PCBs to E-fixture test machines automatically, and place the PCBs at appointed places after testing, according to the test result;All PCBs are 100% visually inspected. All tests and inspect results are recorded in the inspection report and shipped together with the PCBs.
2. EXEPERIENCE
More than 12 years of experiences in the production of PCB. Professional Engineer and oversea sales team in the PCB industry fully involved in the whole business procedures.Designed and manufactured various complex PCBs, which can meet all your design and manufacturing needs.
3. Equipment
More than 80% are automated production equipment, improves the production efficiency and product quality.And a variety of famous brand equipment is used in all processes, including Drilling, Electroless Plating, Electroplating, Etching, Solder Mask, Silk Screen, Chemical Gold, Electrolytic Gold, CNC Profiling,Electrical Testing, and Packing.
4. Price
Since we are directly operated by the factory, intermediate links are omitted. Secondly, we have a complete supply chain management system to control the cost of production, manufacturing and procurement sources. We will give you the cheapest purchase price to compare with other factories or manufacturers while ensuring good quality.
|
|
