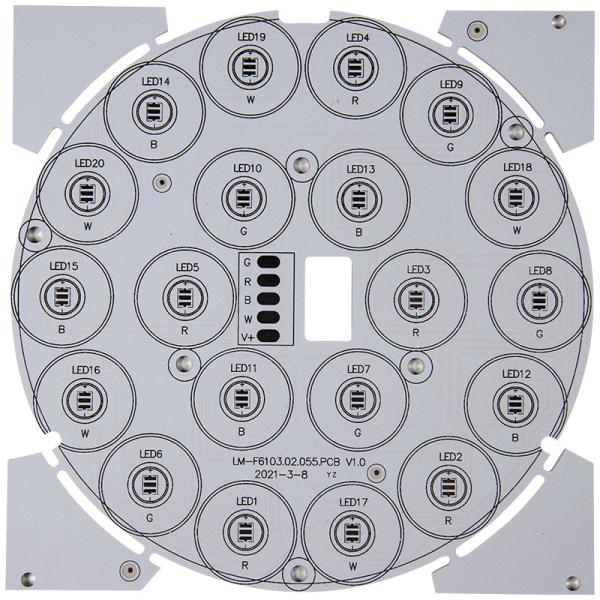

12w 18w 24w 100W LED Light PCB Aluminum Base Dielectric Layer
Aluminum Pcb Board 5730 2835 for all LED light 12w 18w 24w 100W
Structure of Aluminum PCB:
Aluminum PCBs are aluminum based CCLs (CCL is a type of base material of PCBs). Aluminum PCBs are actually quite similar to FR4 PCBs. The basic structure of Aluminum PCBs is four layered. It consists of a layer of copper foil, a dielectric layer, an aluminum base layer and aluminum base membrane.
Copper Foil Layer: the copper layer used is relatively thicker than normal CCLs ( 1oz-10oz). A thicker layer of copper means a larger current carrying capacity.
Dielectric Layer: the Dielectric layer is a thermally conductive layer and is around 50μm to 200μm thick. It had a low thermal resistance and it suitable for its application.
Aluminum Base: The third layer isthe aluminum base which is made up of aluminum substrate. It has a high thermal conductivity.
Aluminum Base Membrane Layer: Aluminum base membrane is selective. It has a protective role by keeping the aluminum surface safe from scraping and unwanted etching. It is of two types i.e. Lower than 120 degree or around 250 degrees (anti high temperature).
Item | Craft Capacity |
Layer | 1-8Layers |
Base Material for PCB | FR4, CEM-1, 22F, Aluminium, High Tg Material, High Frequence ROGERS Halogen-free Material |
Thickness | 0.6-2.4mm |
Copper thickness | 0.5-2OZ |
Surface Treatment | HASL (Tin-Lead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, etc. |
Soldermask | Green, White, Red, Yellow, Black, Blue, transparent etc |
Min.line width | 0.15mm |
Min.line space | 0.15mm |
Min.hole size | 0.25mm |
E-Testing | 100% E-Testing (High Voltage Testing);Flying probe testing |
Certificate | SGS.UL. ROHS,CQC. ISO9001:2015 |
MOQ | 5pcs |
Applicable to | LED light, air conditioner,electric equipent,washing maching |
