Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB
5 Years
| Ask Lasest Price | |
| Brand Name : | Yizhuo |
| Model Number : | Aluminum Pcb Board 01 |
| Certification : | CE,ROHS,UL |
| Payment Terms : | T/T, Western Union |
| Delivery Time : | 10-12 work days |

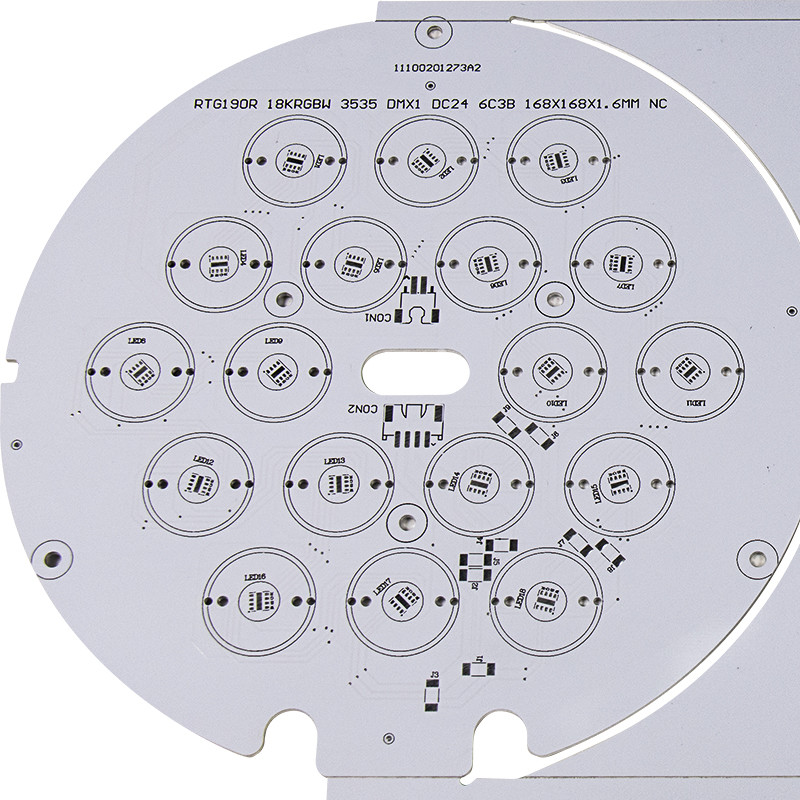

Thickness 1.6mm 2.0mm Custom LED Circuit Board Aluminum Base
LED PCB Aluminum LED Bulb PCB Board Customized LED PCB manufacturing
Aluminium PCB Stack Up details:
1. Aluminium PCB Copper Traces Layer
The copper circuit (traces) layer is etched to form the printed
circuit, Compared to FR4 material,
Aluminium PCB can bear higher electric current when same thick circuit layer and same trace width.
2. Aluminium PCB Dielectic Layer
The dielectic layer is the core technology of the Aluminium PCB,
which mainly serves as the function of adhesion, insulation and
heat conduction.
The better the thermal conductivity of insulation is, the quicker the components spread the heat when they work, which can realize the purpose like improving power loading of the modules,reducing volume, extending life span and increase the output power.
3. Aluminium PCB Metal Substrate Layer
Usually, considering the cost and technical characteristic,
aluminium is the ideal choice. The available aluminum plates are
6061,5052,1060 etc.
If there is a higher heat transfer performance, mechanical properties, electrical properties and other special performance requirements, copper, stainless steel plate, iron plate, silicon steel plate, etc can also be used.
Item | Craft Capacity |
Layer | 1-8Layers |
Base Material for PCB | FR4, CEM-1, 22F, Aluminium, High Tg Material, High Frequence ROGERS Halogen-free Material |
Thickness | 0.6-2.4mm |
Copper thickness | 0.5-2OZ |
Surface Treatment | HASL (Tin-Lead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, etc. |
Soldermask | Green, White, Red, Yellow, Black, Blue, transparent etc |
Min.line width | 0.15mm |
Min.line space | 0.15mm |
Min.hole size | 0.25mm |
E-Testing | 100% E-Testing (High Voltage Testing);Flying probe testing |
Certificate | SGS.UL. ROHS,CQC. ISO9001:2015 |
MOQ | 5pcs |
Applicable to | LED light, air conditioner,electric equipent,washing maching |
Applications of Aluminum PCB:
General lighting applications (Streetlight , Flashlight, Spotlight, etc.)
Back light unit applications
System automotive LED applications
Power converters: telecom, high voltage regulator, power supplies
Hybrid/electric motor control applications
Automobile
FAQ:
Q: Do you have any MOQ Limited ?
A: We havent any limited about MOQ .Sample and mass production all
can support.
Q: How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000
sqm factory space hosts R&D, marketing, logistics and
procurement operations.
Q: How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for
your testing and evaluation.
|
|
