Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB
5 Years
| Ask Lasest Price | |
| Brand Name : | Yizhuo |
| Model Number : | Black Aluminum PCB |
| Certification : | UL,RoHS, CE |
| Payment Terms : | T/T, Western Union |
| Delivery Time : | 10-12 work days |

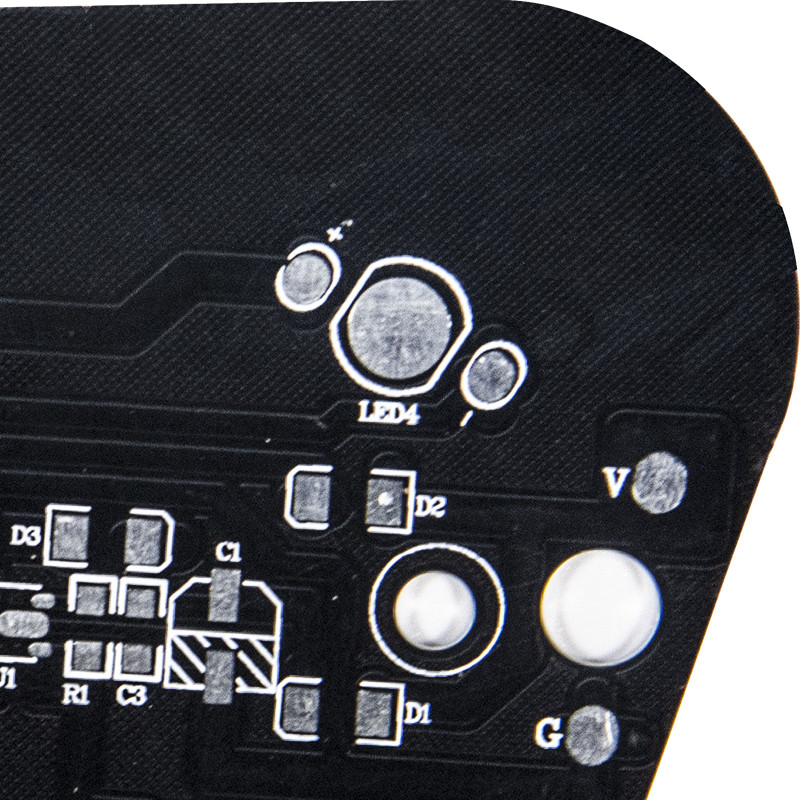

1W 3W 5W 24W LED Light Double Sided PCB Circuit Board Aluminum Plate
1W 3W 5W 24W LED Light Aluminum PCB Circuit Board Power Plate
1. Introduction of PCB Mount Led Aluminum PCB
Fastline Circuits is capable of providing full turnkey and partial turnkey printed circuit board assembly services. For full turnkey, we take care of the entire process, including preparation of Printed Circuit Boards, procurement of components, online order tracking, continuous monitoring of quality and final assembly. Whereas for partial turnkey, the customer can provide the PCBs and certain components, and the remaining parts will be handled by us.
Features-Our Products Advantage
1. Over 10 years experience manufacturer in PCB Assemble and PCB
field.
2. Big scale of producing makes sure that your purchase cost is
lower.
3. Advanced production line guarantees stable quality and long life
span.
4. Produce almost any PCB as your requirement.
5. 100% test for all customized PCB products.
6. One-stop Service ,we can help to purchase the components.
Metal Core PCB Capability
Materials | Aluminum ,copper |
Maximum Lager Count | 4 Layers |
Maximum Panel Size | 17″ x 23″ (432 x 584 mm2) |
Min. Board Thickness | 1.0mm Al, 4 mils (0.1 mm) FR4 |
Copper Clad (inner) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4oz |
Copper Clad (outer) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4 oz |
Surface Finishes | ENTEK 106A, Immersion Gold, HAL, immersion silver |
Solder Mask | LPI: Taiyo PSR 4000, Tamura DS2200, Probimer 77MA |
Minimum Trace (width) | 12.0 mils (0.30 mm) |
Minimum Trace (spacing) | 12.0 mils (0.30 mm) |
Minimum PAD-TO-PAD TOL. | ± 3 mils (± 0.76 mm) |
Hole Size Tolerance (NPTH) | ± 2 mils (± 0.05 mm) |
Hole Size Tolerance (PTH) | ± 3 mils (± 0.076 mm) |
Minimum Hole Size | 20 mils (0.50 mm) |
Outline Dimensional Tol. | < ± 10 mils (0.25 mm) |
Ionic Cleanliness | < 5 mg/in2 of NaCl (0.775 mg/cm2) |
Impedance Control | ± 10% (Differential) |
Warpage | < 1% |
FAQ:
Q1. How about the Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q2: Are all your products certified with UL, ROHS etc?
A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.
Q3: Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
|
|
