Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB
5 Years
| Ask Lasest Price | |
| Brand Name : | Yizhuo |
| Model Number : | led board |
| Certification : | UL,CE,ROHS |
| Payment Terms : | T/T |
| Supply Ability : | 120000 sq.m/per month |
| Delivery Time : | 10-12 work days |

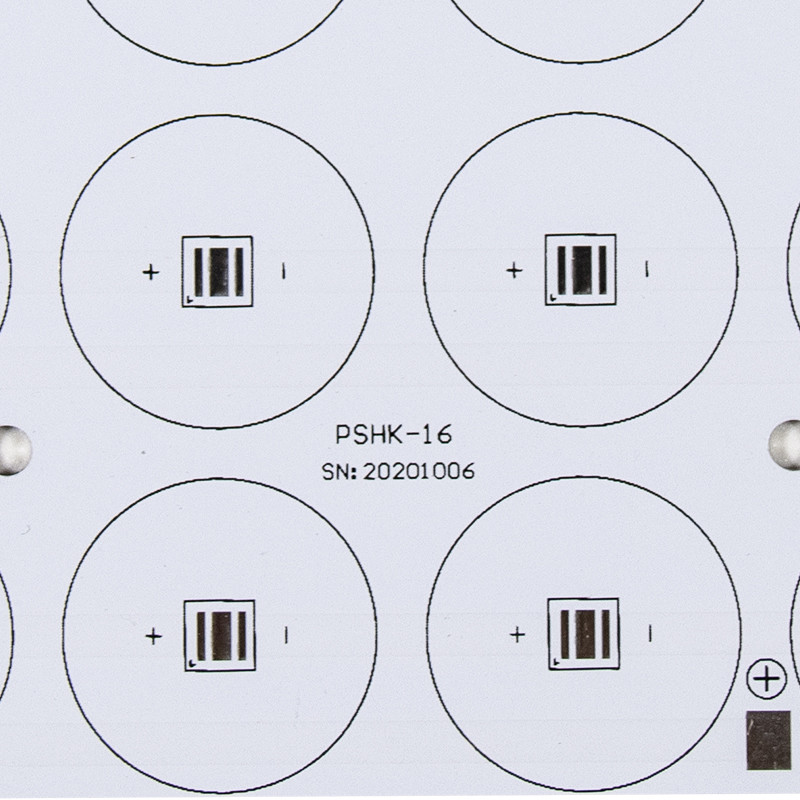

High Power 1W 3W Double Sided PCB Board LED Light Aluminum Plate
Led pcb Board 1W 3W High Power LED PCB Aluminum plate Circuit board
Manufacturing different led lighting devices require the best materials. The importance of using the best materials for manufacturing electronic devices cannot be underplayed because if the materials are sturdy; it will help in increasing the lifespan of the devices.
At the same time, Printed Circuit Boards (PCBs) have become a standard for producing electronic devices. Because of the excellence of these boards, you are confident that the devices you want to manufacture will provide the best service to your customers while lasting for many years.
The first thing we want you to understand is that LED means Light Emitting Diode. It features semiconductor diodes, which when soldered to a Printed Circuit Board (PCB) will create light on the board.
Generally, LED PCB is considered to be a circuit board that has the LED components soldered to it. However, there are other important properties and compositions of the circuit board that we want you to understand too.
For a LED PCB to function effectively, a ceramic base and a thermal heat sink will be used to bond a chip to create light as electrically connected on the circuit board.
Base Material | FR-4 /Aluminum /CEM-1 |
Layers | 1-22 |
Finised inner/outer copper thickness | 1-6OZ |
Finished board thickness | 0.2-7.0mm |
Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm |
Controlled Impedance | +/-5% |
Plugging vias capability | 0.2-0.8mm |
Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion
Silver, Hard gold, Flash gold, OPS... |
FAQ:
Q1. How about your supply capacity?
A: Our supply capacity is around 2000sqm each day. where our 25 000
sqm factory space hosts R&D, marketing, logistics and
procurement operations.
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for
your testing and evaluation.
Q3: Does our product will be tested before shipment?
A: Yes, we could provide Function Circuit Testing .
|
|
