Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB
5 Years
| Ask Lasest Price | |
| Brand Name : | Yizhuo |
| Model Number : | led pcb flood lights |
| Certification : | UL,CE,ROHS |
| Payment Terms : | T/T |
| Supply Ability : | 120000 sq.m/per month |
| Delivery Time : | 10-12 work days |
Aluminium 20w 30w 50w 100w LED PCB Flood Lights Printing Circuits
Aluminium pcb 20w 30w 50w 100w led pcb flood lights printing circuits
Place of Origin | Shenzhen | Service | One-stop Service |
Base Material | Aluminum | Copper Thickness | 0.69-8.26mil(18-210um) |
Board Thickness | 0.2-6.0mm | Min. Hole Size | 0.1mm(4mil) for HDI / 0.15mm(6mil) |
Min. Line Width | 0.075mm(3mil) | Min. Line Spacing | 0.075mm(3mil) |
Surface Finishing | HASL/OSP/Ag/ENIG/ENEPIG/ Immersion silver,Tin | Testing Service | 100% E-testing |
What is PCB Aluminium?
A PCB aluminium has the same layout as that of other PCBs. It consists of a single layer or few layers of copper along with a soldered mask and silkscreen layer over it. However, in place of a plastic substrate or fiberglass, aluminum PCB has a metal substrate.
The base is mainly a combination of aluminum. In general, you can find that aluminum PCBs are single-sided, but they can be double-sided as well. As of now, multilayer aluminum PCBs are yet to be developed and manufactured. These kinds of circuit boards are mainly used in power converting electronics and LEDs.
The light produced by the LEDs tends to produce higher levels of heat, which aluminum can dissipate conveniently. The aluminum circuit boards extend the lifespan of the LED device to provide more durability. Aluminum substrates are present in household lighting, stop lights, and street lights.
The aluminum circuit boards allow the power converters to regulate electronics and alter currents. Developers and creators from other industries find these boards useful, but they don’t implement these boards often.
An LED PCB board tends to generate a high volume of heat, making it difficult to cool via traditional means. Consequently, metal core PCBs are frequently chosen for LED application due to their enhanced ability to dissipate heat. Aluminum in particular is often used to manufacture circuit boards for LED lights. The aluminum PCB typically includes a thin layer of thermally conductive dielectric material that can transfer and dissipate the heat with much greater efficiency than a traditional rigid PCB.
Shenzhen Yizhuo electronics Co.,Ltd is a high-tech enterprise. Since its establishment in 2012,
it has been committed to the innovative development and production of electronic products.

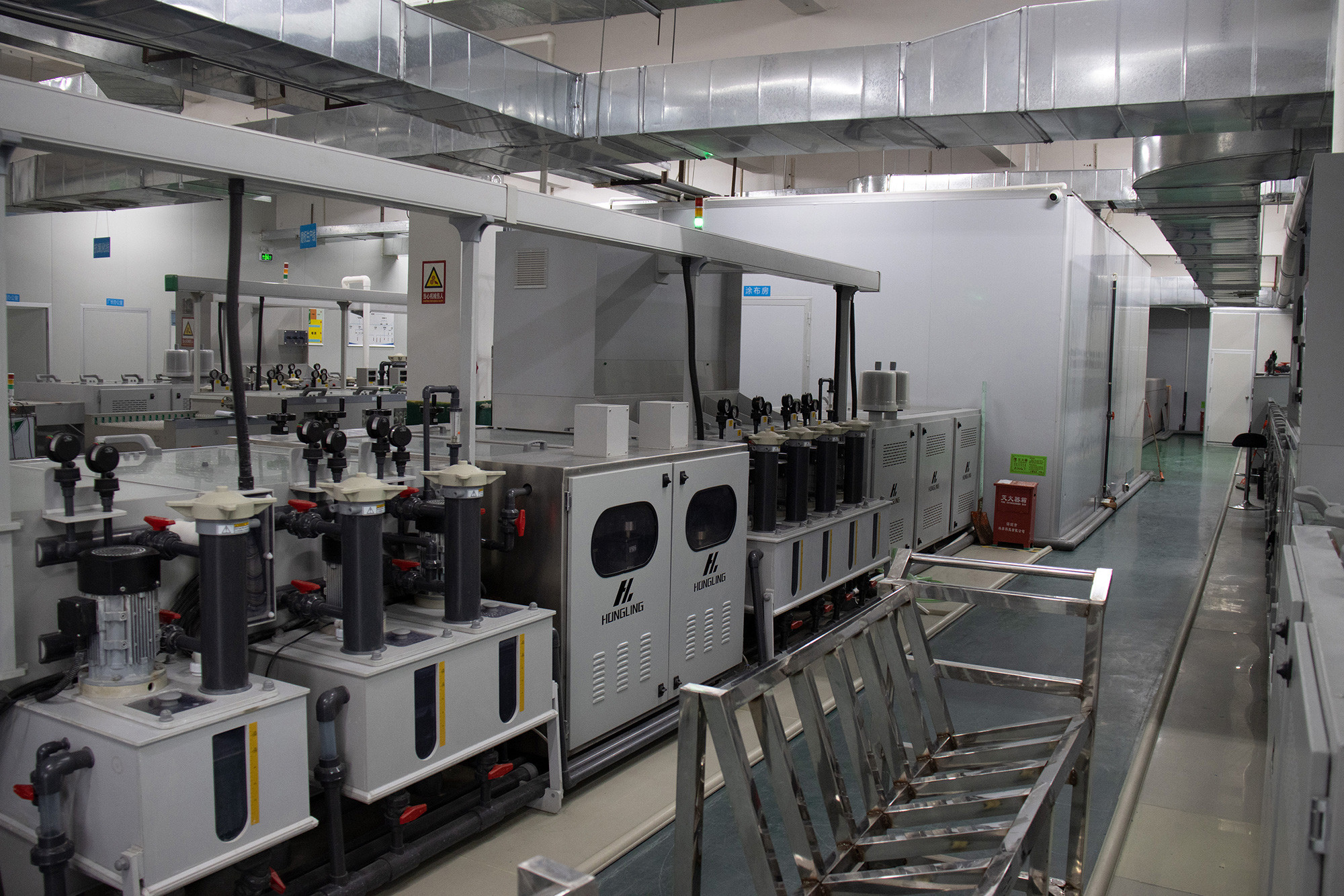

Now it has established a stable R&D team and it has had more than 5,000 square meters of production site.
The products have passed ISO 9001:2015 international quality management system, CE,ROHS, and UL international certification.
FAQ:
Q1. What file formats do you accept for PCB PCBA production?
A. Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Pick and place file
Q2. How can I get a sample to check your quality?
A: After price confirmation,you can place orders for samples for
your testing and evaluation.
Q3: What about the transportation and delivery date?
A: Normally,we use international express(such as,Fedex,DHL,TNT) to deliver samples and small volume orders. For large mass order, we can arrange shipping by sea.
|
|
